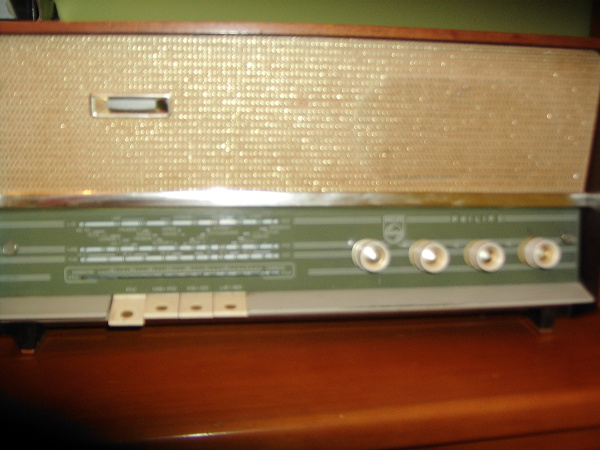

Philips B3X02A radio

This tabletop radio was working perfectly when I bought it. However, as it was being used, it developed some minor faults, which I fixed as they appeared. This radio has FM (from 87.5 MHz to 100 MHz), AM (from 190 m to 550 m), SW (from 16 m to 50 m), and LW (from 1150 m to 1950 m). It uses 7 vacuum tubes, with the following functions:

ECC85FM Mixer/oscilator
ECH81AM mixer and oscillator / FM first IF amplifier
EF85AM IF amplifier / FM second IF amplifier
EABC80FM/AM detector and audio preamplifier
EL84Audio power amplifier
EM84Magic eye
EZ80High voltage rectifier

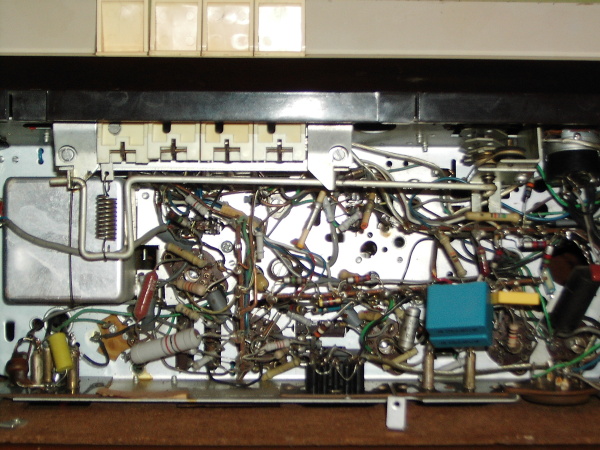

Philips B3X02A radio interior

By EF184
